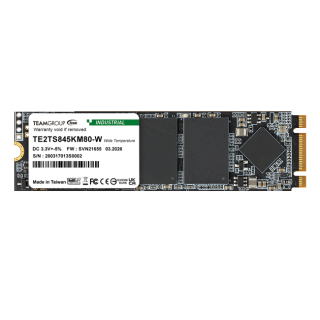

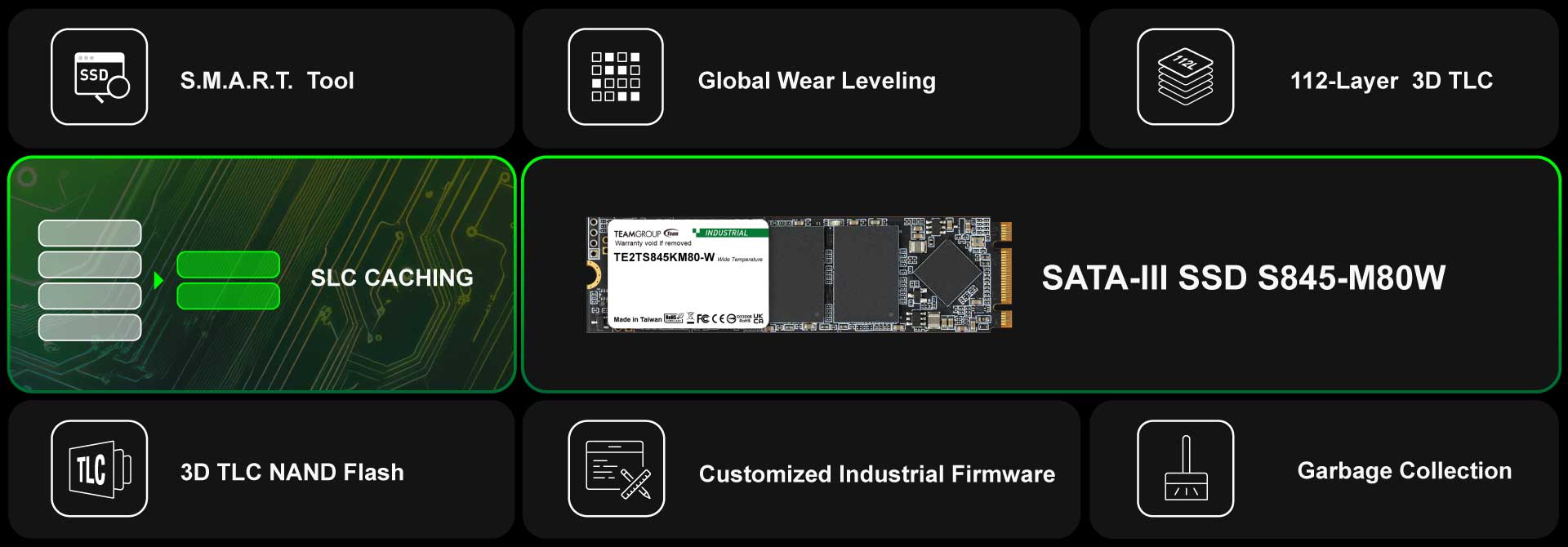

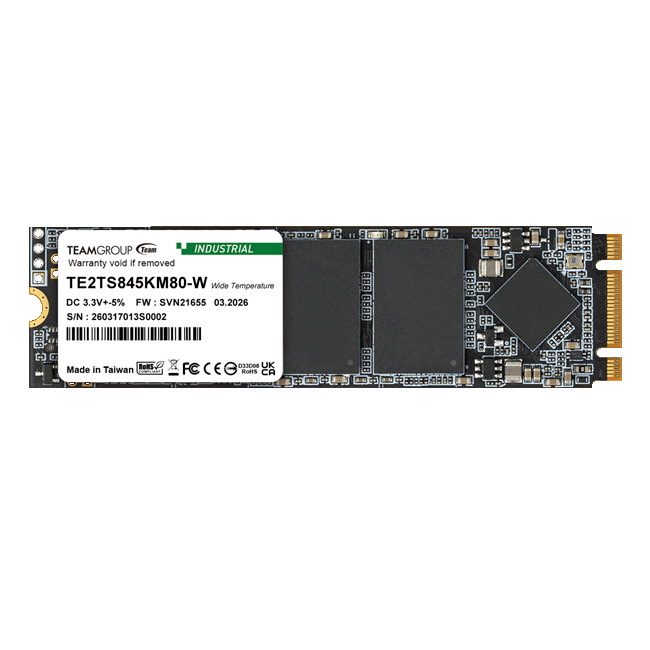

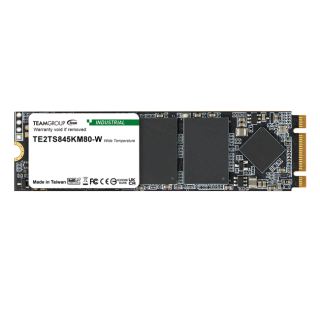

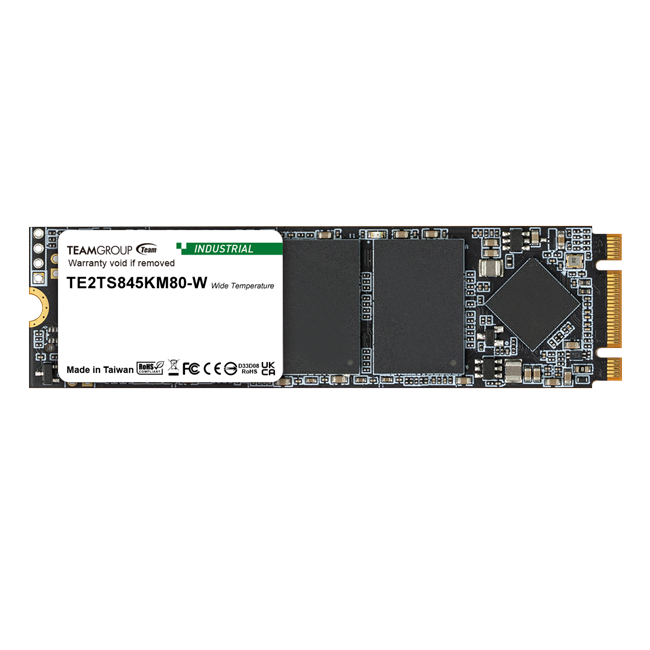

S845-M80W
- M.2 2280 2.15mm single side of Storage Solution for Embedded Systems
- Supports SLC Caching technology and drastically increases computing efficiency
- Industrial-grade BICS Series 112-layer 3D NAND Flash Memory
- Enhanced reliability with up to 3,000 P/E cycle endurance
- Intelligent S.M.A.R.T. monitoring for proactive drive health management
- Built-in LDPC ECC for error correction
M.2 2280 2.15mm single side of Storage Solution for Embedded Systems
Designed, it optimizes space utilization while improving thermal performance. Ideal for compact industrial devices and mobile computing applications, it offers an excellent balance of performance, reliability, and deployment flexibility.
Supports SLC Caching technology and drastically increases computing efficiency
Featuring SLC Direct-to-TLC technology, the SSD employs partition-based block management to emulate SLC operation within designated TLC NAND regions. By accelerating read and write speeds in these areas, it enhances overall storage performance and responsiveness. This approach is especially effective in improving performance consistency and stability for industrial-grade SSDs in high-workload and real-time computing environments.
Industrial-grade BICS Series 112-layer 3D NAND Flash Memory
Built with industrial-grade 112-layer BiCS 3D NAND flash memory, it combines proven process maturity with exceptional reliability, making it ideal for demanding industrial environments. Even under heavy workloads and continuous operation, it maintains excellent thermal performance, effectively reducing read latency while enhancing overall data access efficiency and system stability.

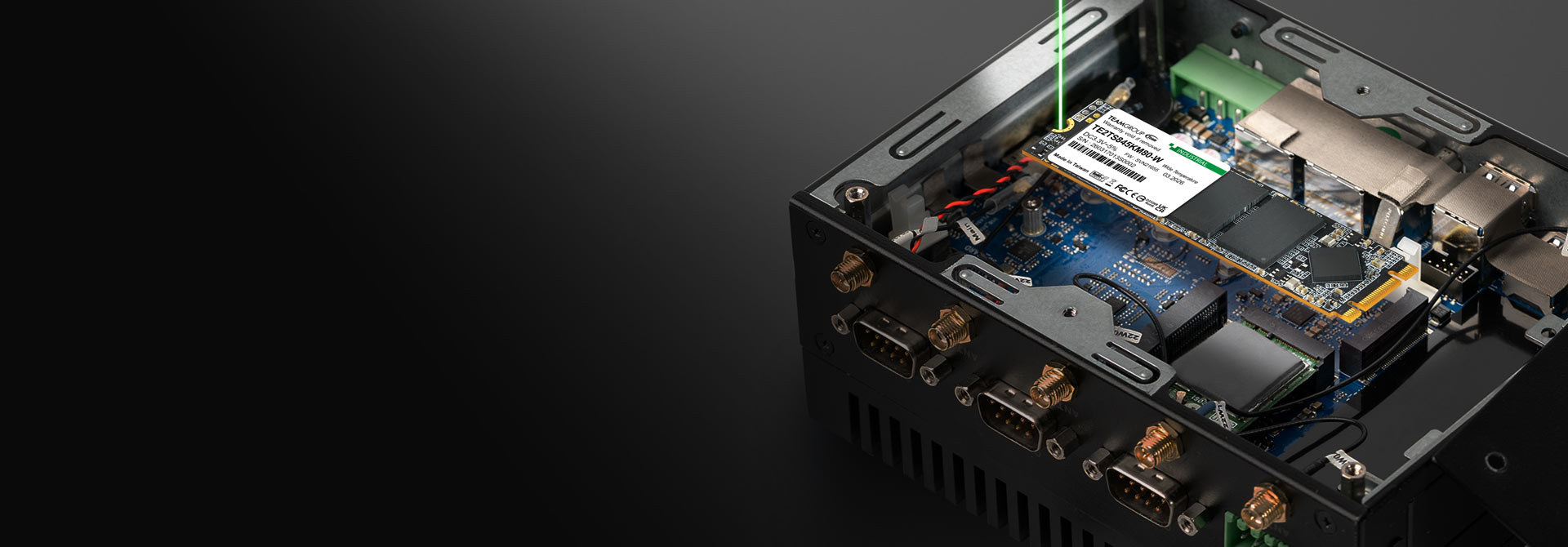

Enhanced reliability with up to 3,000 P/E cycle endurance
Rated for up to 3,000 P/E cycles, the SSD is engineered for enhanced endurance and long-term reliability. This robust design extends product lifespan, safeguards data integrity, and minimizes maintenance and replacement costs.

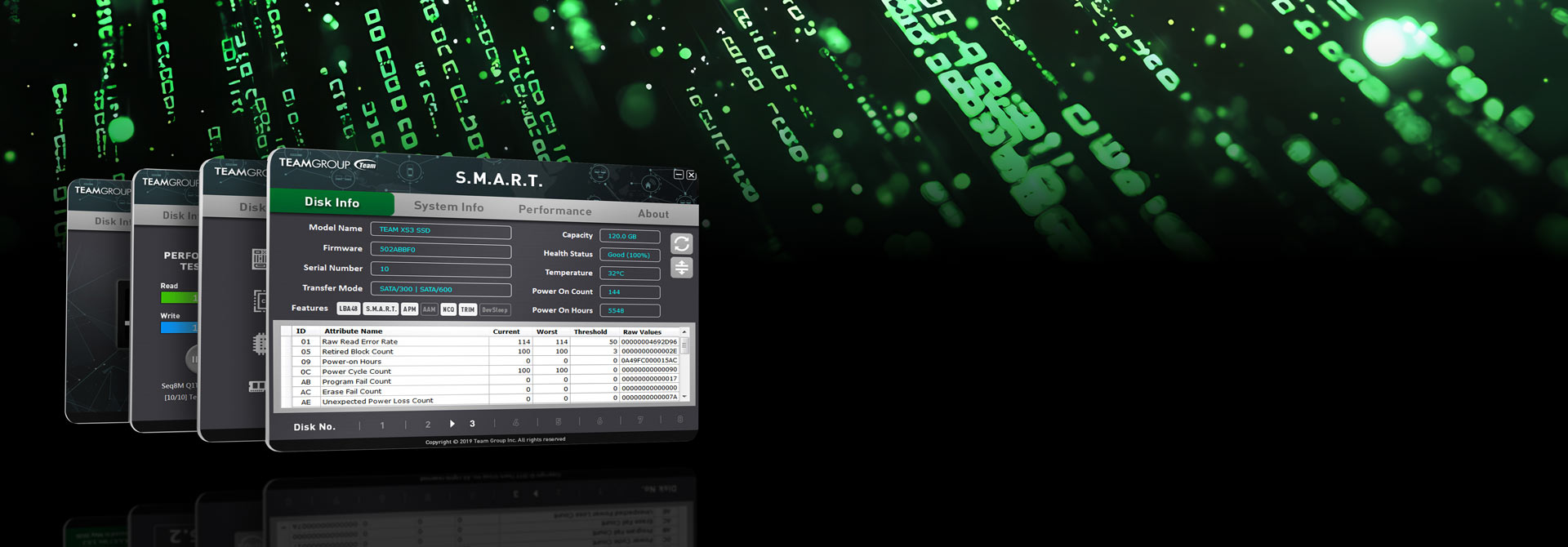

Intelligent S.M.A.R.T. monitoring for proactive drive health management
With TG-SMART software, users can conveniently monitor SSD health and optimize system performance. The software offers comprehensive device status analysis and real-time operational insights, enabling proactive maintenance, enhanced system stability, and improved management efficiency for industrial-grade SSD deployments.
Built-in LDPC ECC for error correction
Advanced LDPC (Low-Density Parity-Check) error correction technology provides superior error recovery compared to conventional BCH ECC, enabling more effective correction of high bit-error rates. Optimized for high-density TLC NAND flash, it enhances data integrity, minimizes the risk of data loss, and helps maximize NAND flash endurance and service life.
Non-operation: 1500G/ 0.5ms (compliant with MIL-STD-883K Test condition B)
Non-operation: 4.02 Grms, 15 ~ 2000 Hz/sine (compliant with MIL-STD-810G General)
We reserve the right to modify product specifications without prior notice.
| Capacity | Team P/N |
|---|---|
| 120GB | TE120GS845KM80-W |
| 240GB | TE240GS845KM80-W |
| 512GB | TE512GS845KM80-W |
| 1TB | TE1TS845KM80-W |
| 2TB | TE2TS845KM80-W |
