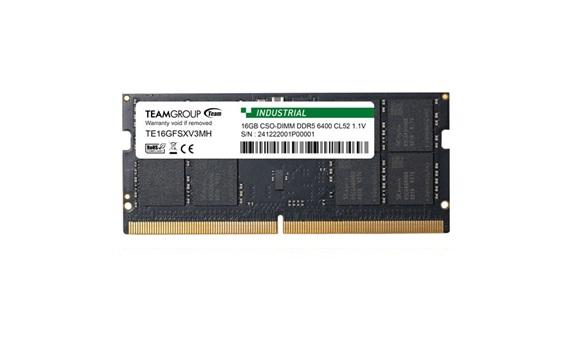

DDR5 SO-DIMM

Embedded
4800 / 5600
  • High-Speed Industrial-Grade Dram Module of the New Generation
  • ES level and Industrial-Grade IC
  • Power Management ICs (PMICs) Equipped
  • JEDEC Low Power 1.1V Standards
  • On-Die ECC for Stable System
  • Military-Grade Resistance to Shocks and Vibrations
  • ROHS/CE/FCC Standards

ES level and Industrial-Grade IC

High-quality ES level IC is selected for the product series to ensure durability and reliability under industrial environments.

proIns_img02

On-die ECC for Stable System

Supports on-die ECCs, a feature that self-corrects DRAM cells for stability and reliability in systems.

proIns_img03

Power Management ICs (PMICs) Design for Effective Load Control

The power management functions have been transferred from the motherboard to the DRAM modules for effective load management, increased reliability and performance of the DRAM modules, optimized signals, and minimal interference.

proIns_img01

JEDEC Low Power 1.1V Standards

The DDR5 series requires a working voltage of only 1.1V, effectively reducing power consumption and heat production, making it great for low-power industrial systems.

proIns_img02

High-Speed Industrial Memory of the Next Generation

In the industrial DDR5 series, the fundamental frequency is drastically upgraded to 4800MHz . The industrial DDR5 series can be applied to 5G communications, edge computing, the Internet of Vehicles, servers, AI, industrial computers with embedded systems, and other industries.

proIns_img03
proIns_img03
Frequency
4800 / 5600
Capacity
8GB / 16GB / 24GB / 32GB / 48GB
Pin Count
262 pin
Width
64Bits
Voltage
1.1V
PCB Height
1.18 Inches
Standard Operating Temperature
0°C (+32°F) ~ +85°C (+185°F) (Tc +95°C)
Extended Operating Temperature
-
Shock
Operation: 50G / 11ms (compliant with MIL-STD-202G Test condition A) Non-operation: 1,500G / 0.5ms (compliant with MIL-STD-883K Test condition B)
Vibration
Operation: 7.69 Grms, 20~2,000 Hz / random (compliant with MIL-STD-810G General) Non-operation: 4.02 Grms, 15 ~ 2,000 Hz / sine (compliant with MIL-STD-810G General)
Anti-Sulfuration
Optional
Gold Finger
3μ”
Value-Added Service
Conformal Coating
Warranty
Limited Lifetime
NOTES:
We reserve the right to modify product specifications without prior notice.




Frequency Capacity COMPONENT
COMPOSITION
RANK Team P/N
4800 8GB 1Gx16 1RX16 TE8GFSXV1AH
4800 16GB 2Gx8 1RX8 TE16GFSXV1MH
4800 32GB 2Gx8 2RX8 TE32GFSXV1MH
5600 8GB 1Gx16 1RX16 TE8GFSXV2AH
5600 16GB 2Gx8 1RX8 TE16GFSXV2MH
5600 32GB 2Gx8 2RX8 TE32GFSXV2MH
Name of Files
Type
Date Uploaded
Download
pdf
2023 / 02 / 13

Related Products

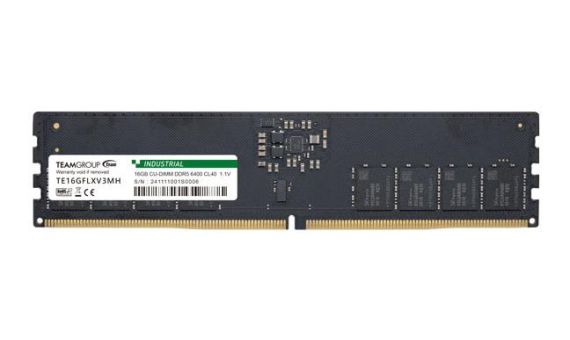

DDR5 U-DIMM
